Description

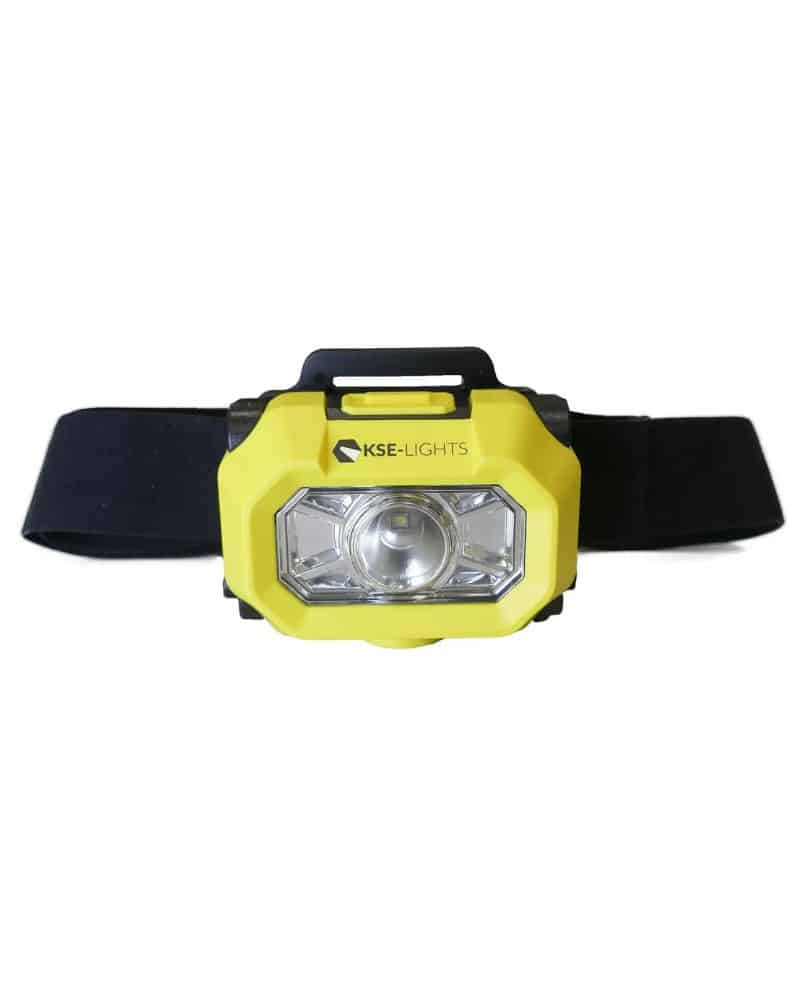

The KSE-LIGHTS KS-7090 is a compact, intrinsically safe LED headlamp designed for hazardous locations. It can be worn directly on the head or mounted on a helmet using the elastic headband, delivering dependable light with a comfortable, non-slip fit and a rugged, sealed build for demanding work.
VERIFIED KEY FEATURES
- Intrinsically safe headlamp for hazardous locations (ATEX Zone 0 gas marking: II 1G Ex ia IIC T4 Ga)
- Two light modes (High/Low) with 216 / 100 lumens
- Beam distance up to 100 m
- Runtime: approx. 5 h (High) / 12 h (Low)
- IP67 dust-tight and water-resistant (sealed construction)
- Tough, impact-resistant housing with built-in gas release vent
- Focus and flood reflector design for practical close-up and distance visibility
- High-visibility yellow body for easy identification
- Soft, padded elastic headband with silicone strips to reduce slipping during movement
- Power source: 3 × AAA alkaline batteries (approved types only: Energizer E92, Duracell MN2400, Panasonic AAA LR03)
- Operating ambient temperature: -20°C to +40°C
- Weight: 130 g (without batteries)
BENEFITS (PPE/WORKWEAR LANGUAGE)
When you’re working in hazardous zones, lighting isn’t just convenience—it’s part of your safety system. The KS-7090 gives you reliable hands-free illumination while keeping compliance front of mind with intrinsically safe protection for gas Zone 0 environments. The padded, non-slip headband stays comfortable through long shifts and active movement, and the high-visibility body makes the lamp easy to spot in tool bags, lockers, and low-light areas. With two practical brightness levels, you can conserve battery life for long tasks or boost output when you need stronger throw and clearer detail.
SPECIFICATIONS AND TECHNICAL DETAILS (CONFIRMED DATA ONLY)
Brand: KSE-LIGHTS GmbH
Model: KS-7090
Product Type: Intrinsically Safe LED Headlamp / Helmet Lamp
Light Source: LED (Cree LED)
Light Modes: High / Low
Luminous Flux: 216 lm (High) / 100 lm (Low)
Beam Distance: Up to 100 m
Runtime: Approx. 5 h (High) / 12 h (Low)
Ingress Protection: IP67
ATEX / Ex Marking (Gas): II 1G Ex ia IIC T4 Ga
ATEX Certificate: DEMKO 14 ATEX 1354X
IECEx: IECEx UL 14.0059X
North American Hazardous Location Ratings:
- Class I Div 1 & 2 Group ABCD
- Class II Div 1 & 2 Group EFG
- Class III
Temperature Code: T4
Ambient Temperature Range: -20°C to +40°C
Power: 3 × AAA alkaline batteries (not included)
Approved Battery Types (Alkaline): Energizer E92 / Duracell MN2400 / Panasonic AAA LR03
Housing: Tough, durable casing with built-in gas release vent
Colour: High-visibility yellow
Weight: 130 g (without batteries)
Relevant Standards Listed for the Model: UL 913 (7th Edition); CSA C22.2 No. 157-92 (Reaffirmed 2012); EN 60079-0:2009; EN 60079-11:2012; EN 60079-26:2007; IEC 60079-0 (5th Edition); IEC 60079-11 (6th Edition); IEC 60079-26 (2nd Edition)
HOW TO USE
- Open the battery compartment (in a safe, non-hazardous area) by loosening the rear screws.
- Install 3 × AAA alkaline batteries using the correct polarity. Use only the approved battery types and replace all three at the same time.
- Securely close the housing and tighten the screws properly.
- Fit the elastic headband to your head or helmet and adjust for a stable, comfortable position.
- Press the top switch to turn on. Press again to switch between light modes.
- After use, wipe clean with a damp cloth and store dry.
CUSTOMER REVIEWS
- Sipho N. (★★★★★)
“Comfortable on a hard hat and it doesn’t slide around when you’re climbing or bending. The low mode lasts the whole shift, and the output is more than enough for inspections.” - Annelie R. (★★★★★)
“Solid little lamp. The seal is good and it handled wet conditions without any issues. Simple two-mode operation and the beam reach is impressive for the size.” - Jaco P. (★★★★☆)
“Great for hazardous areas where we need compliant gear. The headband is soft and the yellow body is easy to find. Just remember to keep the right AAA batteries on hand.”
FAQS
- Will this fit my head or helmet?
Yes. The KS-7090 uses an adjustable elastic headband and can be worn directly on the head or on a helmet. - Can I use it in hazardous areas?
It is certified for hazardous gas environments with the marking II 1G Ex ia IIC T4 Ga (Zone 0). Always follow your site risk assessment and safety procedures. - Which batteries can I use?
Use only the approved AAA alkaline battery types: Energizer E92, Duracell MN2400, or Panasonic AAA LR03. Do not mix brands or old/new batteries—replace all three together. - Can I change batteries while underground or in an Ex zone?
No. Replace batteries only in a non-hazardous area. - How do I clean and maintain it?
Wipe with a damp cloth only. Ensure the housing screws are secured after any opening/closing and avoid swapping components, as this can affect intrinsic safety. - Is it waterproof?
It is rated IP67, meaning it is sealed against dust and protected against water ingress under the IP67 test conditions.
INDUSTRIES / WORKPLACE APPLICATIONS (UP TO 10)
- Oil and gas (hazardous area operations)
- Chemical processing plants
- Fuel storage and loading areas
- Utilities and electrical maintenance (hazardous environments)
- Refineries and tank farms
- Marine and shipyard operations (where Ex-rated equipment is required)
- Industrial maintenance and inspections
- Confined-space work (site rules permitting)
- Fire and rescue support roles (hazardous atmosphere readiness)
- Manufacturing facilities with classified gas zones
READY FOR HAZARDOUS ZONES: RELIABLE, HANDS-FREE LIGHT
If you need a compact headlamp that prioritises safety compliance without sacrificing practicality, the KSE-LIGHTS KS-7090 is built for the job. With intrinsically safe protection, IP67 sealing, dependable runtimes, and a secure non-slip headband, it’s a straightforward, work-ready choice for hazardous locations where dependable lighting matters most.
