Description

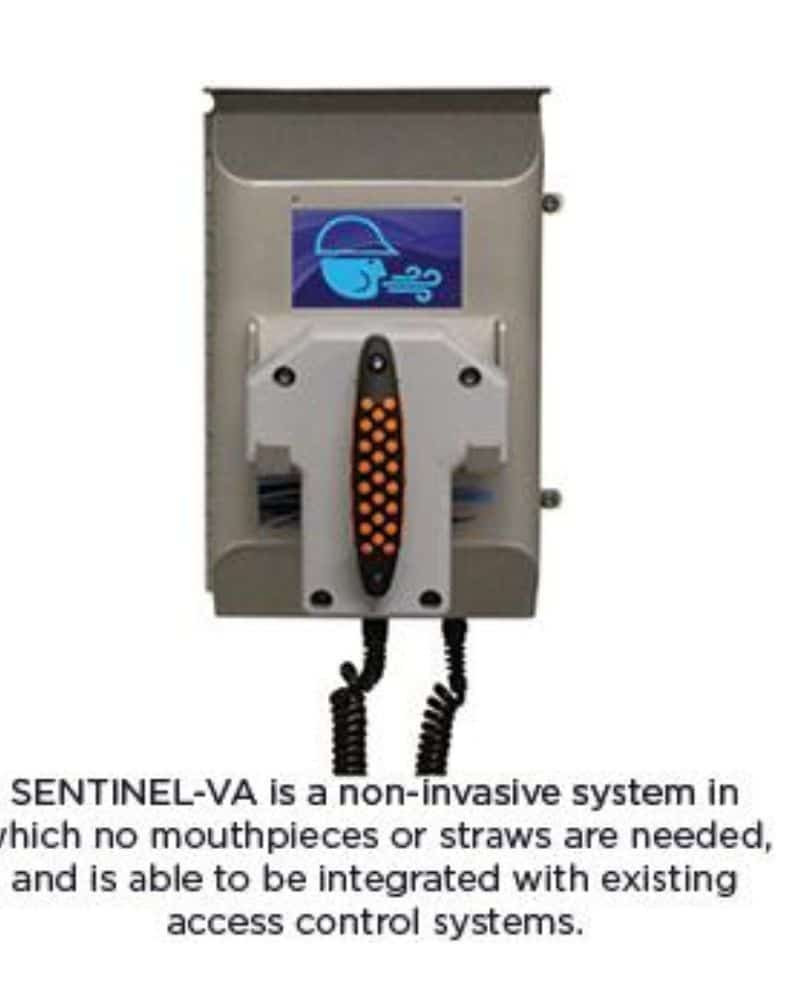

The Lifeloc Sentinel is a wall‑mounted, automated breath alcohol screening system for zero‑tolerance access points. It delivers instant negative results and sub‑10‑second positives to keep entry lanes moving. The unit is self‑administered, non‑contact, and uses a full‑colour LCD with icon prompts. A platinum fuel‑cell sensor, anodized aluminium housing, and IP54 protection suit demanding industrial sites.
Key Features
• Automated passive testing; no mouthpieces.
• Instant negatives; positives in under 10 seconds.
• Integrates with turnstiles, time clocks, and access control via relays.
• Rugged anodized aluminium construction.
• IP54 ingress protection.
• Full‑colour LCD with universal icons.
• Modular design with in‑place calibration and USB software updates.
Benefits
• Reduces queues at shift start.
• Cuts consumable costs and waste.
• Simple for employees, contractors, and visitors.
• Reliable performance in harsh conditions.
• Quick service with modular parts and local calibration.
Specifications & Technical Information
• Brand / Model: Lifeloc Sentinel
• Product Type: Wall‑mounted breath alcohol entry system
• Sensor: Full‑size platinum fuel cell

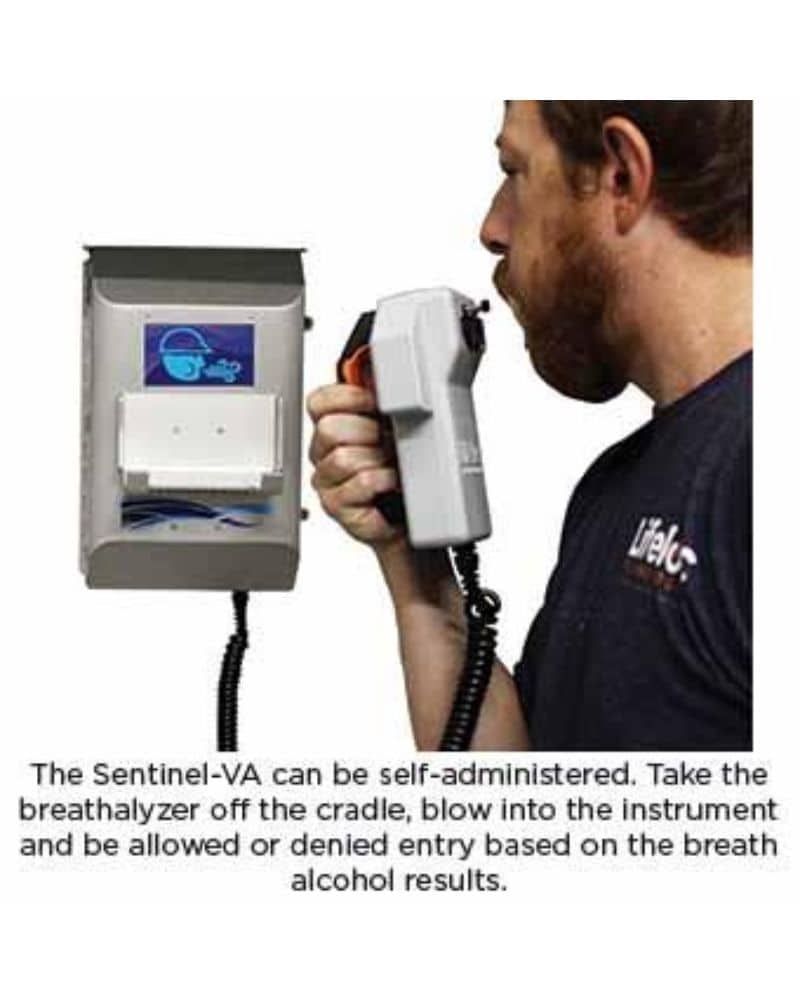

• Operation: Passive, self‑administered, non‑contact
• Display: Full‑colour LCD with icon prompts
• Results: Immediate on negatives; under 10 seconds on positives
• Integration: Double relay output for access control sequencing
• Maintenance: In‑place calibration; software updates via internal USB
• Housing: Anodized aluminium, tamper‑resistant layout
• Ingress Protection: IP54
• Operating Temperature: 0–55 °C (32–130 °F)
• Power: 9 V 3 A; 90–264 VAC input (±5% tolerance)
• Size / Weight: Approx. 203 × 330 mm; 2.15 kg
• Colours / Sizes: Not specified by manufacturer
How to Use
- Follow on‑screen icons.
- Blow toward the collector; the test triggers automatically.
- Read the result.
- If connected to access control, entry logic activates based on outcome.
- Calibrate on site and apply USB updates per maintenance plan.
Customer Reviews
• Reuben M.: “Fast results. Morning queues are gone.”
• Lindi A.: “Icons make it easy for visitors. Turnstile integration worked first time.”
• Pieter V.: “Tough build and consistent readings. Maintenance is quick.”
FAQs
• Do I need mouthpieces?
No. It uses passive testing.
• Can it connect to our turnstiles?
Yes. It sequences with existing systems via relays.
• How fast are results?
Immediate on negatives; under 10 seconds on positives.
• What maintenance is required?
In‑place calibration and USB software updates with modular parts.
• Where can it be used?
Industrial sites requiring IP54 protection and rugged housing.
• What is the operating temperature?
0–55 °C (32–130 °F).
Industries & Applications
• Mining
• Construction
• Oil & Gas
• Manufacturing
• Warehousing & Logistics
• General industrial access control
Keep Your Workforce Moving Safely
Streamline entry screening with fast, consumable‑free testing that integrates into your access control and stands up to tough conditions.
