Description

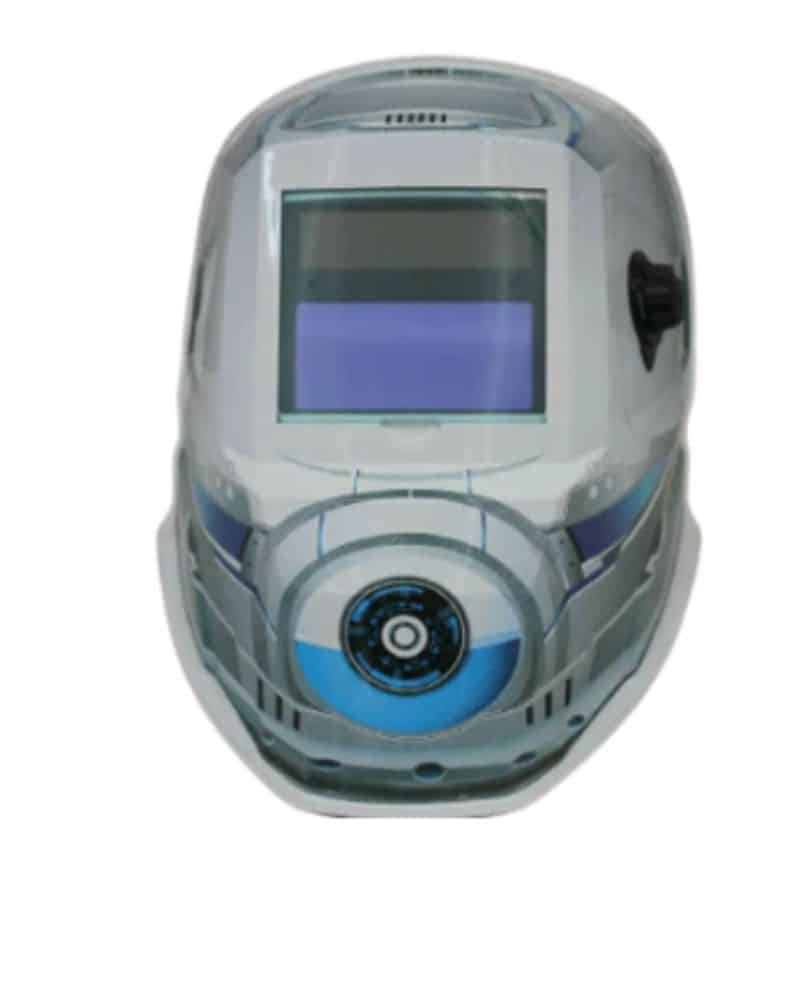

The Pioneer Stormtrooper Adjustable Helmet combines iconic styling with advanced auto-darkening technology, delivering superior protection and comfort for a range of welding applications.
Key Features
- 🛡 Solar-powered auto-darkening lens with Li‑Mn battery backup
- 🔆 Adjustable shade range: 9–13 (with #5 grind mode)
- ⚙️ Fully adjustable headgear with 4‑point ratchet system
- ⏱ Fast switching time: 0.04 ms
- 🔧 Stepless sensitivity and delay time control (0.15–0.80 s)
- 🧩 Large lens viewing area (~110 × 90 mm)
Benefits
- 👍 Ideal for MIG, TIG, Stick and plasma cutting
- 😌 Lightweight design eases strain during long weld sessions
- 🌐 ANSI, CE and RoHS-certified for global safety standards
- 🔄 Responsive lens minimizes eye strain and UV/IR exposure
Specifications
| Brand | Pioneer |
| Model | Stormtrooper Adjustable Helmet (SKU WH001AO) |
| Product Type | Auto‑Darkening Welding Helmet |
| Shell Material | High‑impact ABS / Polycarbonate |
| Lens Size | Approx. 110 × 90 mm |
| Shade Range | #9–13 (welding), #5 (grind) |
| Switching Time | 0.04 ms |
| Sensitivity Adjustment | Stepless |
| Delay Time Adjustment | 0.15–0.80 s |
| Power Supply | Solar + Lithium‑Manganese battery |
| Certifications | ANSI Z87.1, CE, RoHS |
| Suitable For | MIG, TIG, Stick welding & grinding |
| Individual Pack | Plastic-sealed box including helmet, auto‑dark system, bowguard, face shield, user manual, warranty |
How to Use
- Inspect helmet and lens for damage before use.
- Adjust the 4‑point headgear and ratchet for a secure fit.
- Set shade level (9–13) according to welding type; switch to #5 for grinding.
- Fine-tune sensitivity and delay to match arc conditions.
- Start welding—the lens auto-darkens in 0.04 ms; allow delay to clear afterward.
- Store in original box to maintain lens protection and packaging integrity.
The helmet meets ANSI Z87.1 and CE standards, ensuring fast auto-darkening to protect your eyes from harmful UV/IR exposure.
⭐⭐⭐⭐⭐ “Stylish design and works great for TIG work.” — Johan V.
⭐⭐⭐⭐ “Lens is fast and clear, comfortable fit all day.” — Thandi M.
⭐⭐⭐⭐⭐ “Solid build, love the grind mode and sensitivity control.” — Pieter S.
FAQs
- Q: Is it suitable for plasma cutting? A: Yes, supports plasma cutting along with MIG, TIG, Stick and grinding.
- Q: Can you replace the lens? A: Yes, includes spare protective lens and accepts clip-in replacements.
- Q: How long does the battery last? A: Powered by solar light with lithium‑manganese battery backup for continuous operation.
- Q: Is it compatible with prescription glasses? A: Yes, the adjustable headgear and bowguard support glasses and respiratory gear.
- Q: What certifications does it hold? A: ANSI Z87.1, CE and RoHS certified.
Industries & Applications
- 🏭 Manufacturing and fabrication
- 🚧 Construction and structural welding
- 🔧 Automotive repair and maintenance
- ⚙️ Metal art and sculpture
Compliance & Certifications
- ANSI Z87.1 certified
- CE certified
- RoHS compliant
With its responsive auto-darkening lens, ergonomic fit, and safety certifications, the Pioneer Stormtrooper Adjustable Helmet is an excellent choice for welders seeking reliable eye protection and standout design on any jobsite.
