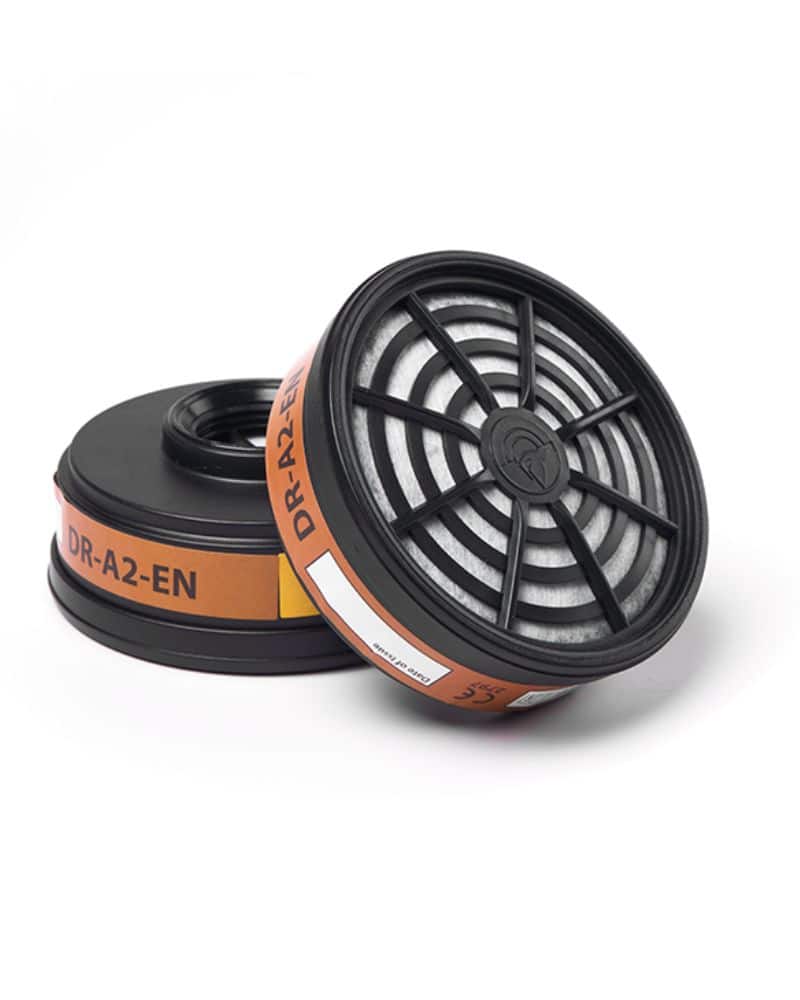

Dromex A2-EN Twin Filter A2 Gas Black NRCS/8072/0414 Only Compatible With EN302 Twin Mask

The Dromex DR-A2-EN A2 Twin Filter is a reusable twin gas cartridge set designed for use on Dromex twin cartridge respirators. It filters organic gases and vapours with boiling points higher than 65°C and is built for comfortable, low-profile performance with a large surface area to help extend service life.

VERIFIED KEY FEATURES

• A2 organic gas filtration for organic gases and vapours (boiling point >65°C) with good warning properties
• Twin reusable cartridge design for Dromex twin respirators only
• Ergonomic, lightweight, low-profile shape to help maintain unobstructed vision
• Large surface area for greater loading capacity
• Activated carbon layer helps remove harmful gases and vapours and neutralise unpleasant odours
• Easy thread attachment with right-hand (clockwise) thread
• Can be used with Dromex pre-filters DR-P2PF-EN or DR-P3PF-EN to add particulate protection and help prolong gas filter use (when the correct pre-filter and retainer are fitted)
• Black cartridge body with brown colour code marking for organic gases and vapours (A2)
• NRCS type approved and CE marked; certified as Category III PPE to listed standards

BENEFITS (WORKPLACE-READY)
When your job puts you around solvent-type fumes, paints, fuels, and other organic vapours, you need respiratory protection you can trust and swap out quickly. The DR-A2-EN is made to sit close to the face for better comfort and vision in tight work areas, while the activated carbon construction supports confident day-to-day use in demanding environments. Pair it with the correct Dromex twin respirator and, where needed, the correct Dromex pre-filter system to tailor protection for dusty or oily work conditions.

SPECIFICATIONS AND TECHNICAL DETAILS (CONFIRMED)
Brand: Dromex
Model / Item Code: DR-A2-EN
Product Type: Reusable twin A2 organic gas filter cartridges (used as twin (2) filters)
Compatible Respirators: Dromex twin cartridge respirators DH302 and DHFFM (for twin respirators only)
Do Not Use With: Dromex single port masks (twin cartridges are not for single port masks)
Filter Type / Class: A2 (organic gases and vapours)
Applicable Standards / Approvals:

• PPE Regulation (EU) 2016/425 (CE marked)
• Category III PPE
• EN 14387:2004 +A1:2008
• EN 143:2021 (referenced within the cartridge and filter selection guide for the range)
• SANS 54387:2007 (NRCS homologated)
  Notified Body / CE Marking: BSI CE No. 2797
  Module Certificates (BSI The Netherlands): Module B CE 784120; Module D CE 784124
  NRCS Type Approval No.: NRCS/8072/0414
  Breathing Resistance (Maximum):
• 1.4 mbar at 15 L/min
• 5.6 mbar at 47.5 L/min
  Breakthrough Time (BTT): Cyclohexane (C6H12) BTT >35 minutes at 10 ml/m³ (5000 ppm)
  Construction / Materials (Confirmed):
• Carbon cartridge bodies: ABS (Acrylonitrile Butadiene Styrene)
• Filter media layers: activated carbon and polyester sheet layers
  Additional Construction Detail: No metal fittings in the device
  Colour / Marking Code: Brown (B) for organic gases and vapours; cartridge body listed as black on product listing
  Pre-Filter Compatibility (Optional, when fitted correctly): DR-P2PF-EN and DR-P3PF-EN pre-filters with the correct retainer/cover system
  Packaging: One set (2) cartridges shrink wrapped in a polybag to help prevent contamination
  Shelf Life: 4 years if stored correctly (expiry date indicated on the cartridge)
  Storage Guidance (Confirmed): Store in a dry, cool environment away from direct sunlight and contamination; relative humidity below 75%
  Cleaning (Confirmed): Wipe exterior with a damp cloth only; do not use solvents; avoid water entering the filter (cleaning does not extend filter life)

HOW TO USE (SIMPLE STEPS)

1. Pre-check

• Confirm the packaging is intact and the cartridge is within its shelf life (expiry date is on the side of the filter).
• Ensure you have selected the correct filter type for the hazard.

2. Fit the cartridges (right-hand thread)

• Screw the cartridges onto the respirator filter connectors clockwise (right-hand thread) until secure.
• Do not over-tighten.

3. Optional pre-filter fitting (when required)

• Fit the correct Dromex pre-filter and retainer/cover assembly as designed for use with gas cartridges.

4. During use and replacement

• Leave the work area immediately and replace the filter if breathing becomes difficult, you smell or taste contaminants, or you experience irritation, dizziness, or distress.
• Change filters frequently as part of a site-specific respiratory programme, and as directed by a competent person.

5. After use and storage

• Store in a container, mask storage bag, or original packaging, out of direct sunlight and away from chemicals and abrasive substances.
• Clean the exterior with a damp cloth only.

CUSTOMER REVIEWS

1. Lerato M.
   “Fitted easily onto our Dromex twin respirators and sits low enough that it doesn’t block my view when I’m working close up. The right-hand thread is straightforward and it feels secure once tightened.”
2. Andre S.
   “We use these for solvent-type vapours in our workshop and the cartridges are comfortable for longer tasks. The large filter surface area makes a noticeable difference compared to older bulky cartridges we used.”
3. Priya Naidoo
   “Good quality finish and the packaging keeps them clean until you need them. Clear expiry marking on the side, and it pairs well with the pre-filter setup when the job gets dusty.”

FAQS

1. Does this filter come in sizes?
   No. The DR-A2-EN is not sized. Fit depends on using it with the correct compatible Dromex twin respirator (DH302 or DHFFM).
2. What does A2 protect against?
   A2 is for organic gases and vapours with boiling points higher than 65°C and good warning properties.
3. Can I use DR-A2-EN on a single port half mask?
   No. These are twin cartridges for twin respirators only and must not be used on Dromex single port masks.
4. Can I add a particulate pre-filter?
   Yes. This cartridge can be used with Dromex pre-filters DR-P2PF-EN or DR-P3PF-EN when fitted with the correct retainer/cover system.
5. How do I clean it?
   Wipe the exterior with a damp cloth only. Do not use solvents and do not allow water to enter the filter. Cleaning does not extend the filter’s life.
6. When should I replace the cartridges?
   Replace if breathing resistance increases or if you smell or taste contaminants. Also replace immediately if the cartridge is damaged or the packaging was opened inadvertently before use.

INDUSTRIES / WORKPLACE APPLICATIONS (UP TO 10)

• Oil and gas operations
• Chemical processing and handling
• Pharmaceutical manufacturing
• General manufacturing and industry
• Painting and surface coating work
• Iron and steel fabrication
• Utilities and maintenance teams
• Water treatment facilities
• Construction sites
• Agriculture (where organic vapours are present)

READY FOR RELIABLE ORGANIC VAPOUR PROTECTION
Choose the Dromex DR-A2-EN when you need an A2 organic gas filter designed for Dromex twin respirators, with verified approvals and practical features that support day-to-day comfort and efficient change-outs. Supplied as a twin cartridge set, it’s a dependable option for workplaces where organic vapours are part of the job and correct, compliant respiratory protection is non-negotiable.
